Model: R46
Scale pattern: CMOS
Interface: USB wired

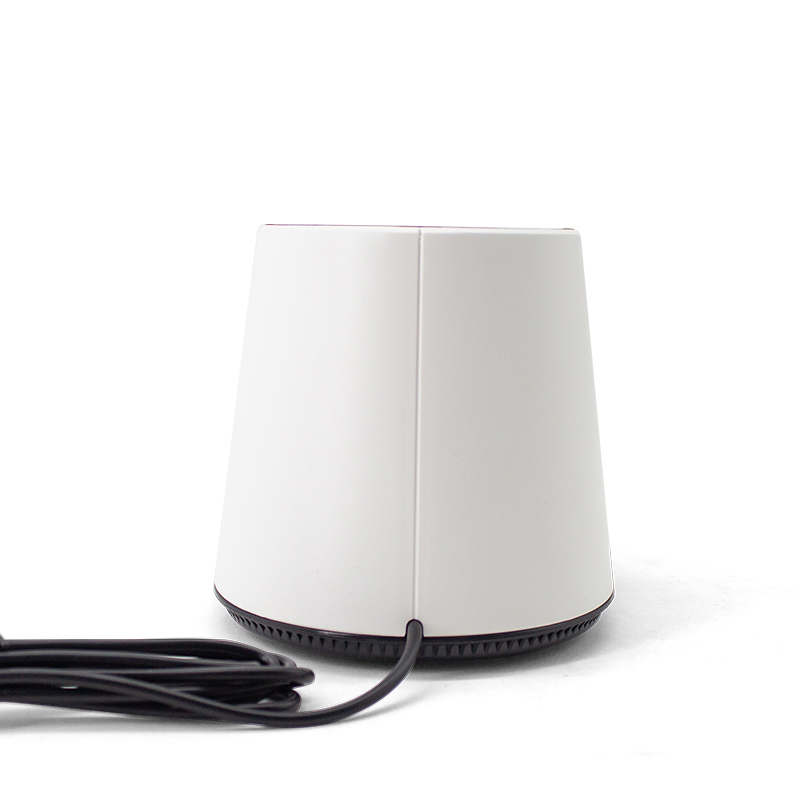

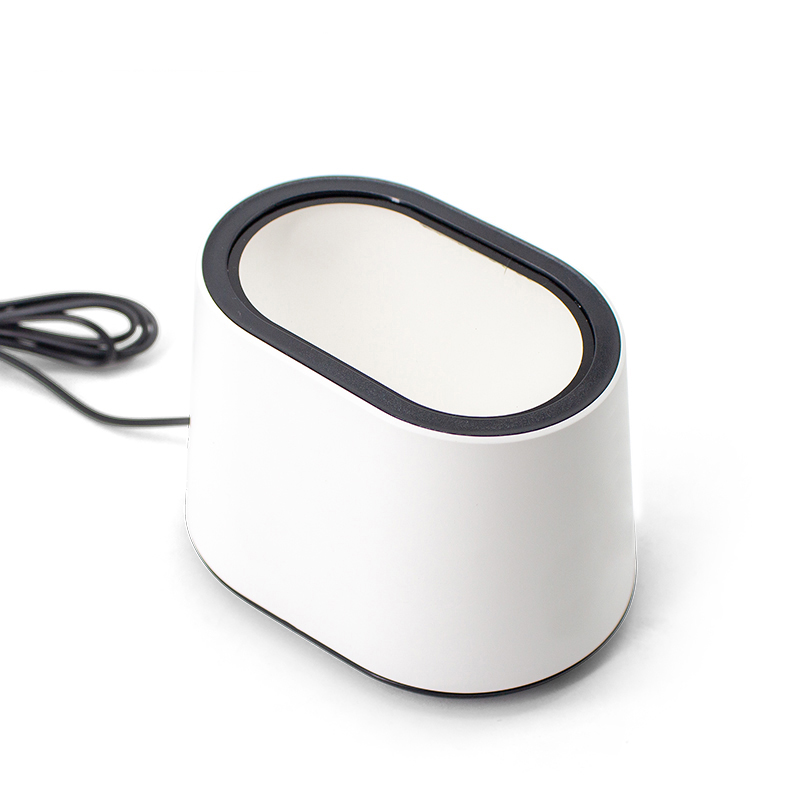

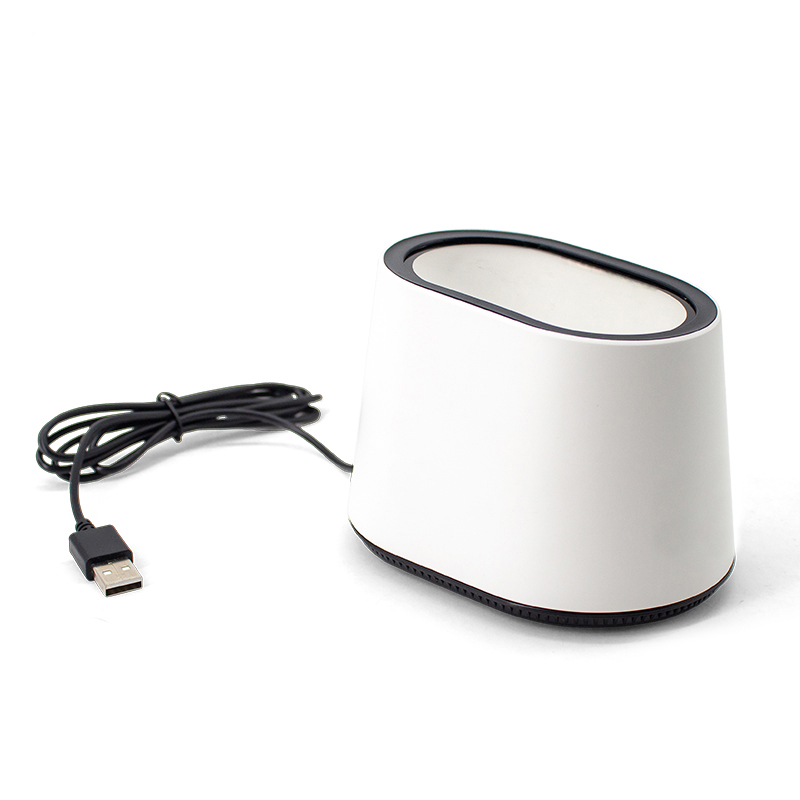

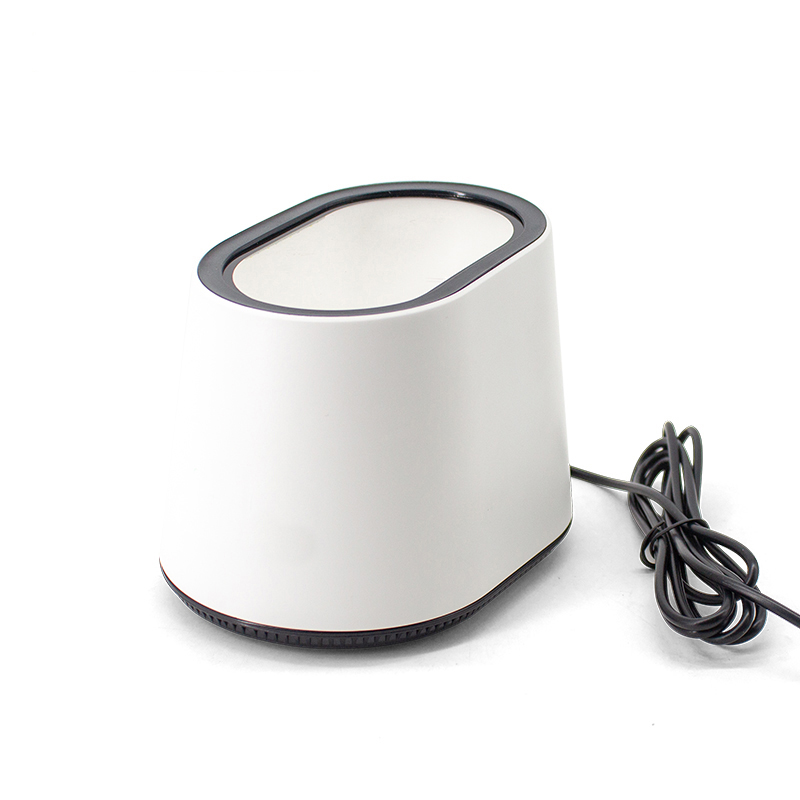

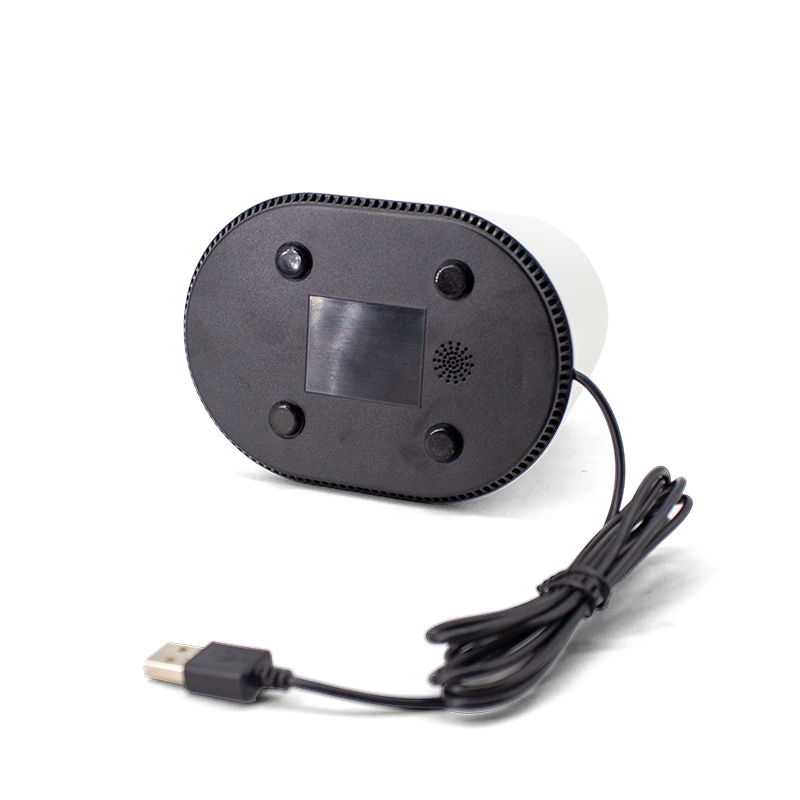

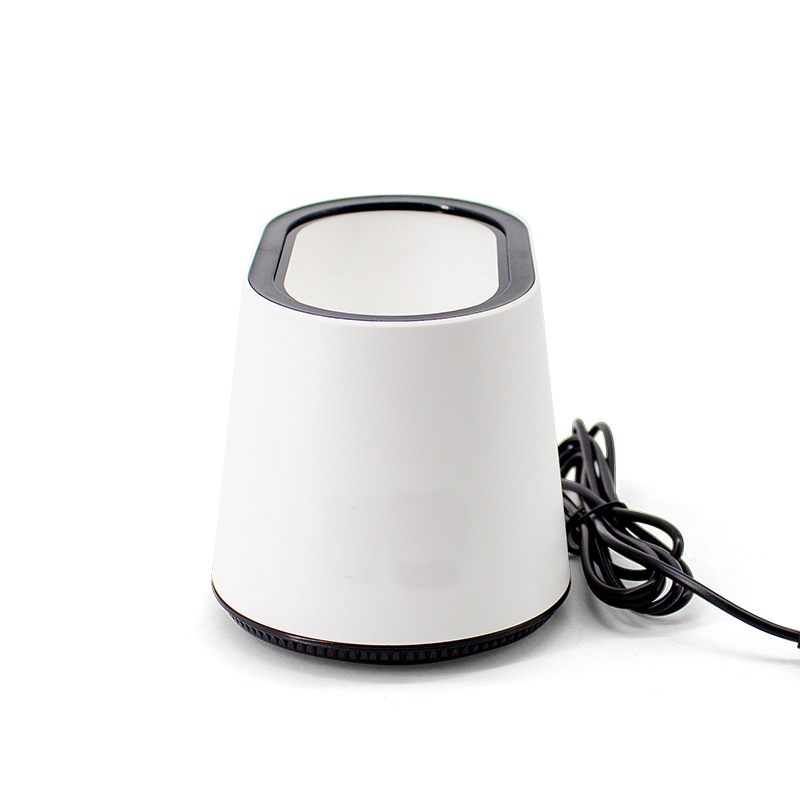

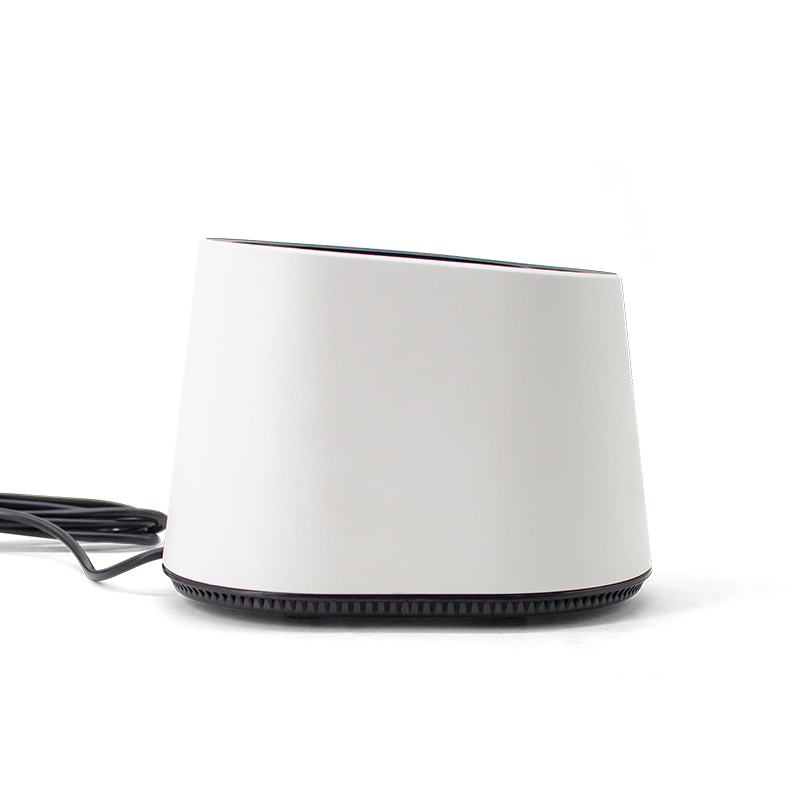

Introduction: The R46 is a high-performance 2D barcode fixed platform scanner created by Siyuan. With fast decoding and high-precision reading ability, can identify one-dimensional bar code, but also can identify two-dimensional code, more able to meet the current use of mobile phone payment scanning, mobile phone equipment, computer screens and so on. Multi-functional scanning, fast scanning speed, strong reading performance, high accuracy.
- Parameters
- Pictures
- Downloads
| Project | Parameters |
| Light | White LED, scansettings on or off |
| The interface is supported | Usb |
| Scan mode | Single-line scanning |
| How to scan | Automatic |
| Operating voltage | DC5V |
| The working current | 200mA |
| The operating environment | 0~50℃ |
| The storage environment | -20~60℃ |
| Operating humidity | 5~85% |
| Store humidity | 5~85% |
| The size of the exterior | 130mm×93mm×93mm |
| Weight | Around 270g |
| How to prompt | Buzzer, scan settings on or off |
| Barcodes are supported | code39,code128,codabar,code93,ean13,i25,gs1,databar,qrcode |
