Model: W6
Scan pattern: CMOS
Interface: wireless 2.4G; Bluetooth
Introduction: Voice broadcast status, screen display function, portable, compact and easy to carry, complete functions and fast code scanning
- Parameters
- Dimensions
- Downloads
| Physical parameters | ||
| Scan mode | Key trigger/ autosensing/ continuous scanning | |
| Communication interface | USB-HID /USB-COM | |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment) Bluetooth: 0-20m (open environment) | |
| Prompt mode | Buzzer, LED light, display, vibration motor | |
| How it is set up | Manually scan the setup codes one after the other | |
| Housing material | ABS+PC | |
| Cable standard | USB Straight Line 1m | |

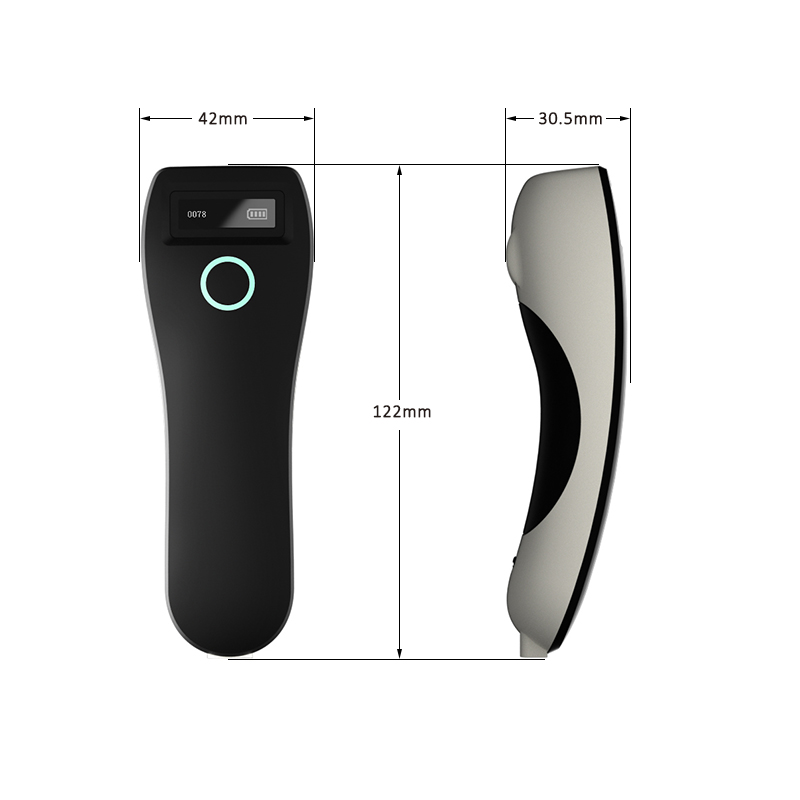

| Exterior dimensions | 122mm×42mm×30.5mm (barcode scanner) | |
| Weight | 60g (net weight) | |
| Performance parameters | ||
| Internal storage | 900K | |
| Sensors | 300,000 CMOS | |
| Resolution | 640*480 | |
| Light source | White LED | |
| Scan angle | ±60°, ±60°,360° (Elevation angle, declination angle, corner of rotation) | |
| Scan rate | 120 fps | |
| Field of view | 48° (H) x 30° (V) | |
| Printing contrast | Min. 15% | |
| Decoding kind | 1D: EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey,etc 2D: QR Code,Data Matrix,PDF417,Micro QR, Aztec,etc,Support mobile phone screen code reading | |
| Minimum resolution | 1D 3MIL;2D 5MIL | |
| Depth of field | QR (20mil) 10~130mm Data Matrix(10mil) 20~100mm PDF 417 (7mil) 25~105mm | EAN-13 (13mil) 30~175mm Code 39 (8mil) 25~145mm Code 128 (7mil) 25~110mm |
| Electrical parameters | ||
| Input voltage | DC 5V±10% | |
| Current | Working: 350 mAh; Standby: 130 mAh | |
| Battery | 900mAh lithium-ion battery | |
| Charging time | About 2 hours | |
| Battery life | 5 days (standby), 12 hours (working: scan every 5 seconds) | |
| Environment parameters | ||
| Temperature | 0°C-50°C (working); -40°C~+60°C (storage). | |
| Humidity | 5%-95% non-condensing | |
| Ambient brightness | Max.5,000 Lux (fluorescence) | |
| Seismic resistance | It can withstand a drop in the air of 1.5m | |
