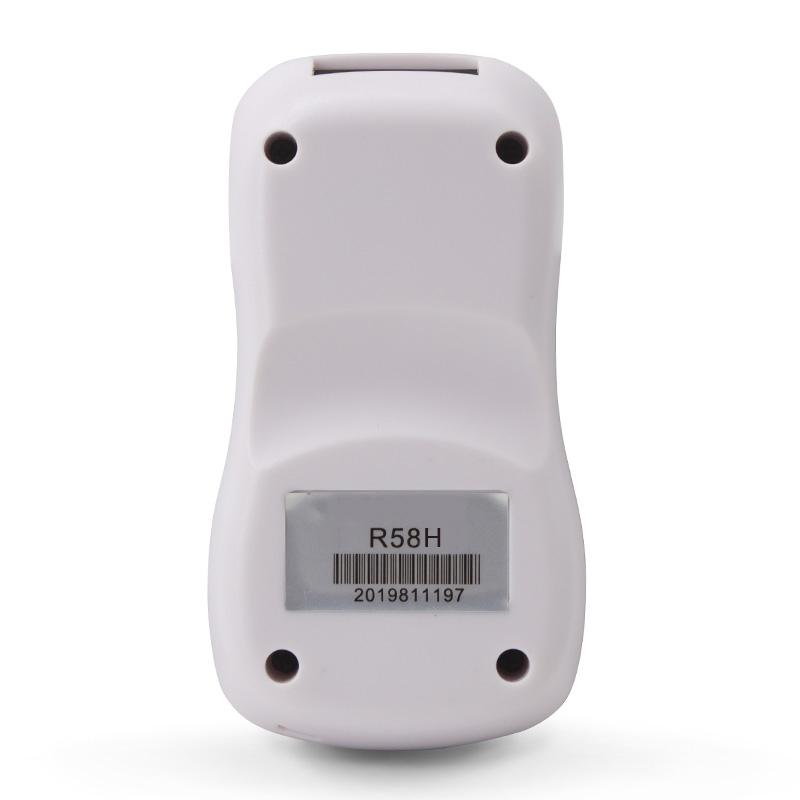

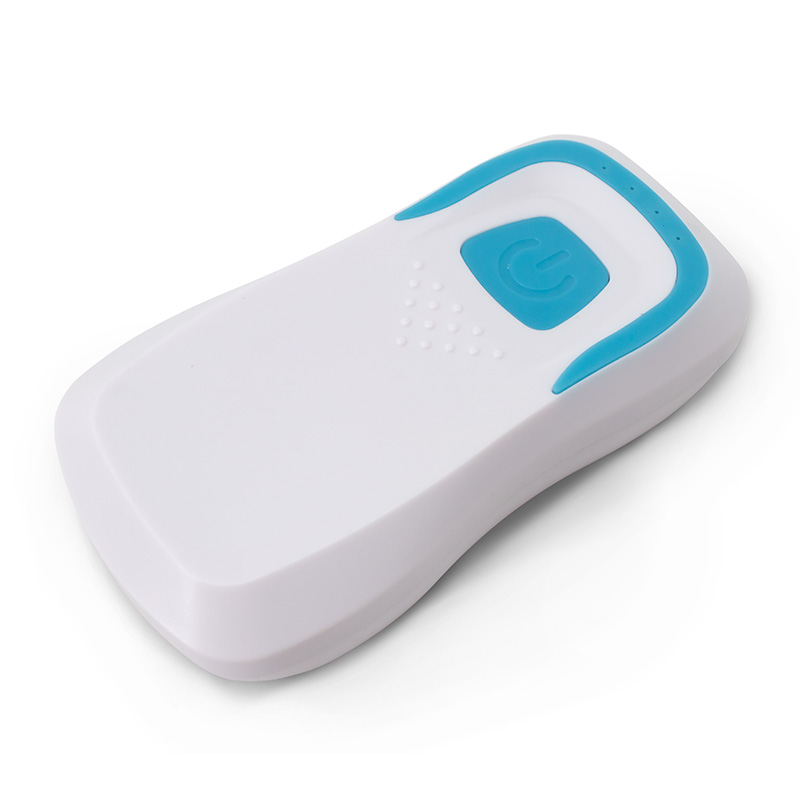

Model: R58H
Frequency: 902~928MHz
Interface: Wireless 2.4g / Bluetooth (optional)
Support cards: ISO 18000-6C
Introduction: R58H is a dedicated 915Mhz UHF reader based on RFID radio frequency technology combined with Bluetooth communication. Not only the power consumption is low, but the standby time can be as long as 1 year. It changes the traditional data line transmission method and does not require additional power supply (the card reader comes with a lithium battery). Only the Bluetooth of the receiver and the Bluetooth of the reader are successfully paired. You can directly upload the epc number of the UHF tag to the receiving end of the device via Bluetooth.
- Parameters
- Pictures
- Downloads
| project | parameter |
| model | R58H |
| Working frequency | 915Mhz |
| Card reader type | ISO 18000-6C(EPC GEN2) |
| communication method | Bluetooth/2.4G wireless |
| Format | Adjustable |
| Reading distance | 0-50cm（The specific effective reading distance depends on the card） |
| Card reading rate | 106K/Bit |
| Card reading speed | 0.2S |
| Reading distance | 0.5S |
| Card reading time | ＜100mS |
| Operating temperature | -20℃—70℃ |
| Working current | 100mA |
| Charging voltage | 5V |
| battery capacity | 1000MA |
