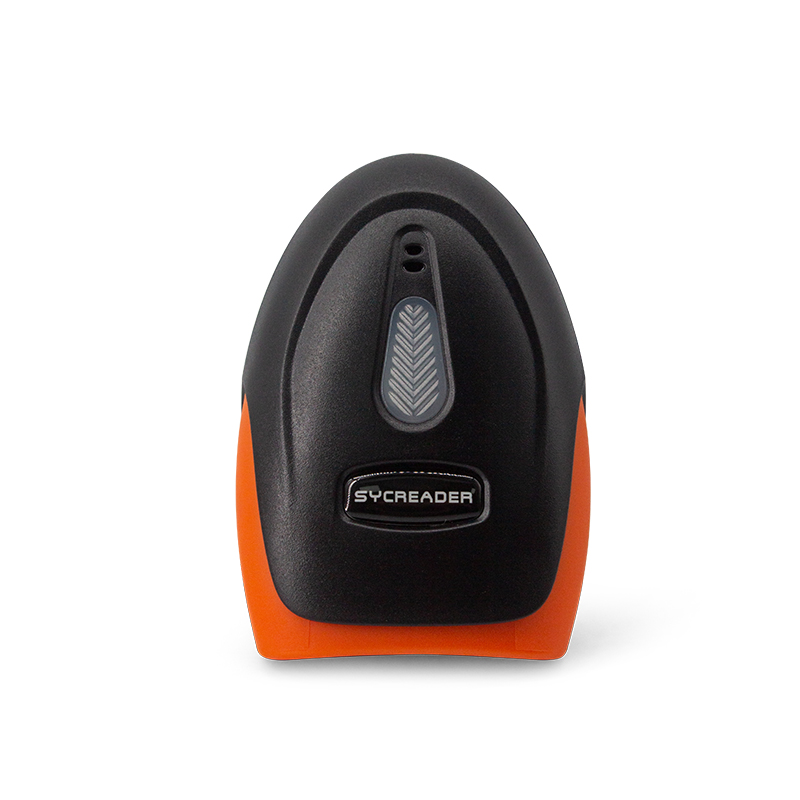

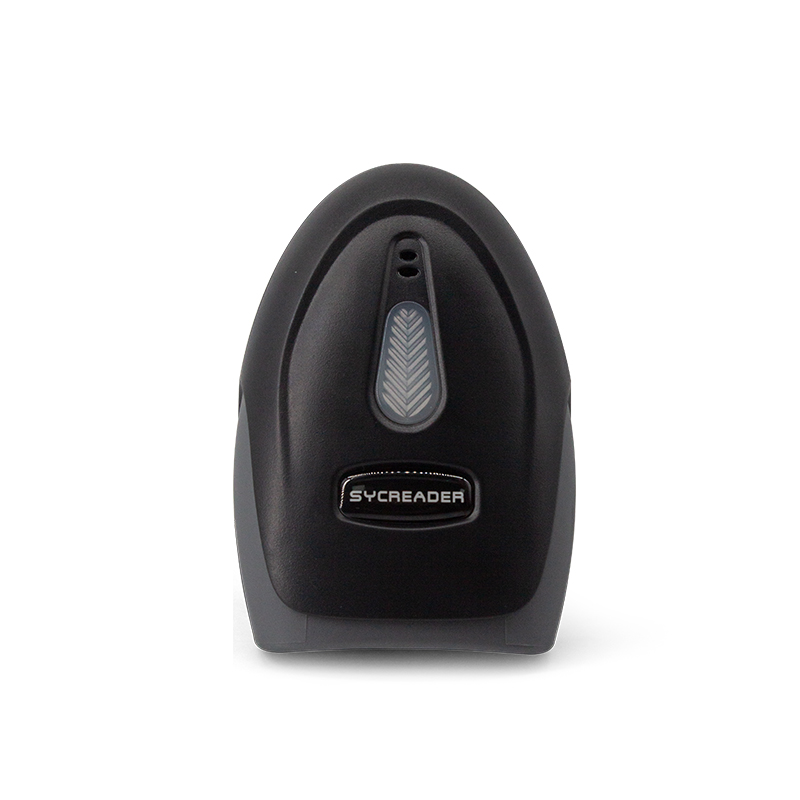

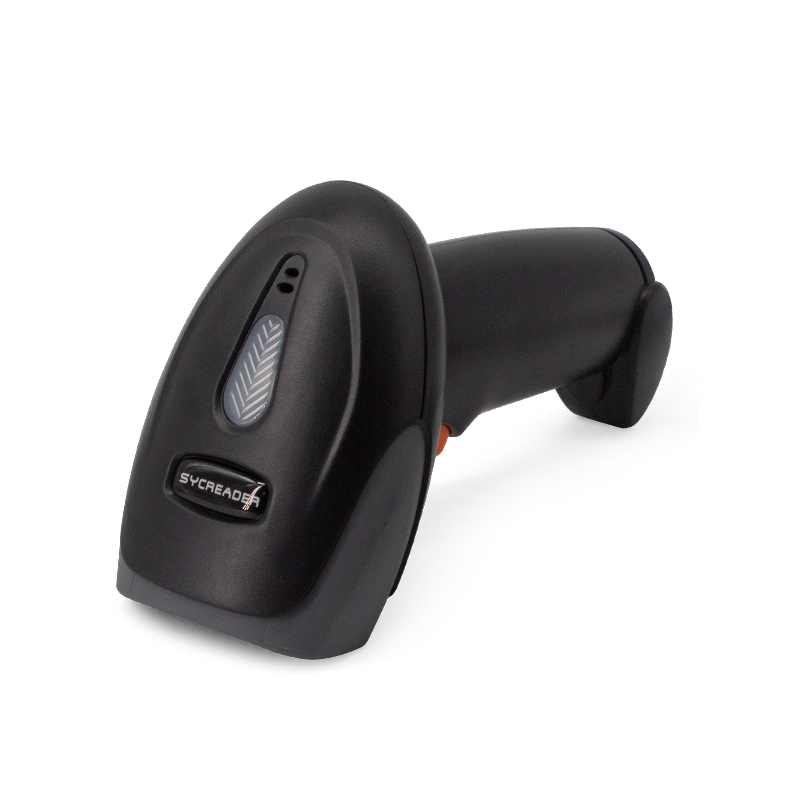

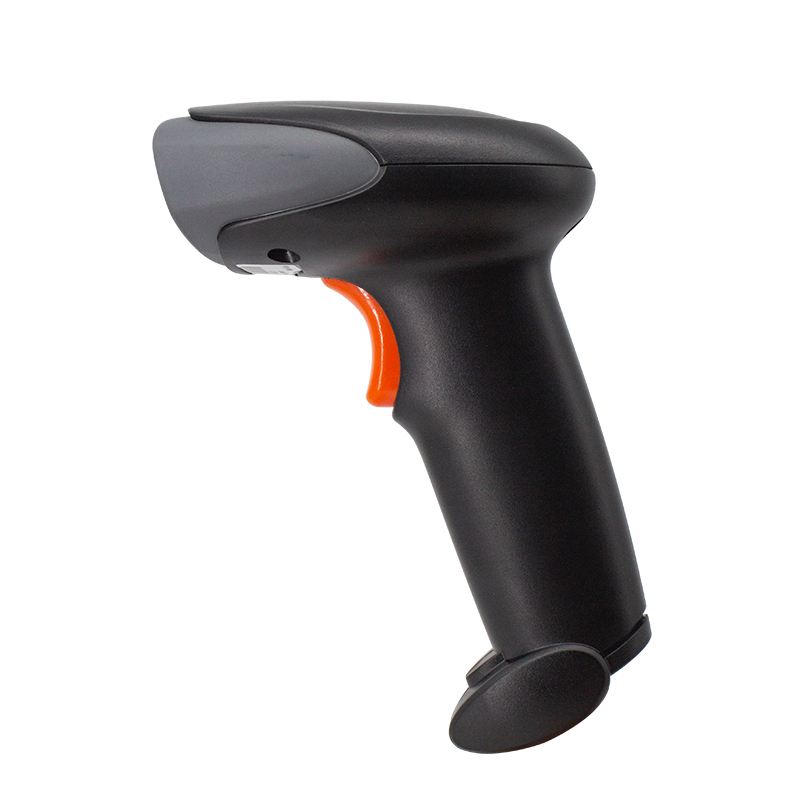

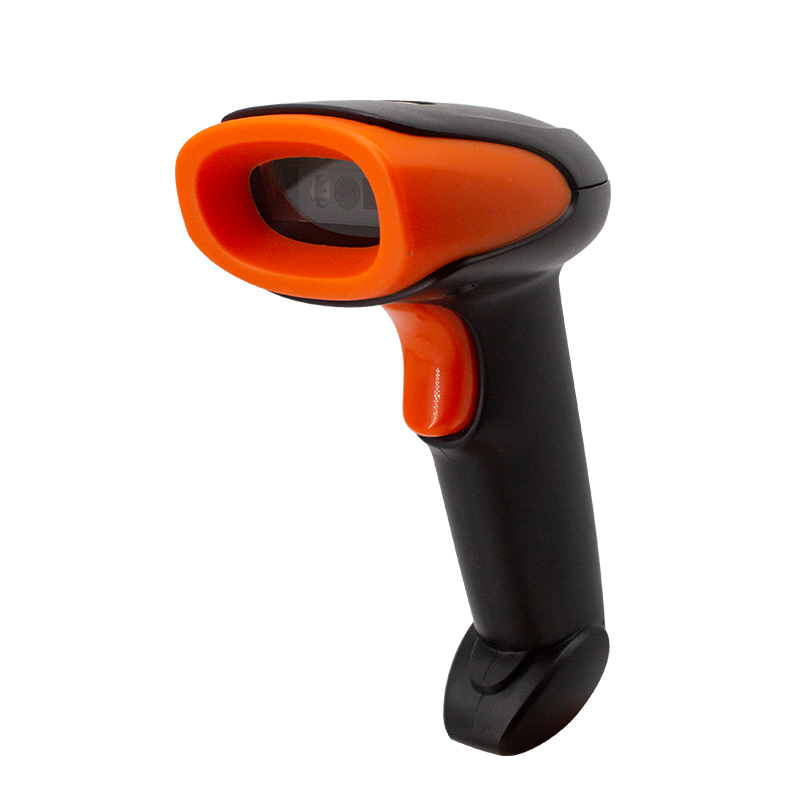

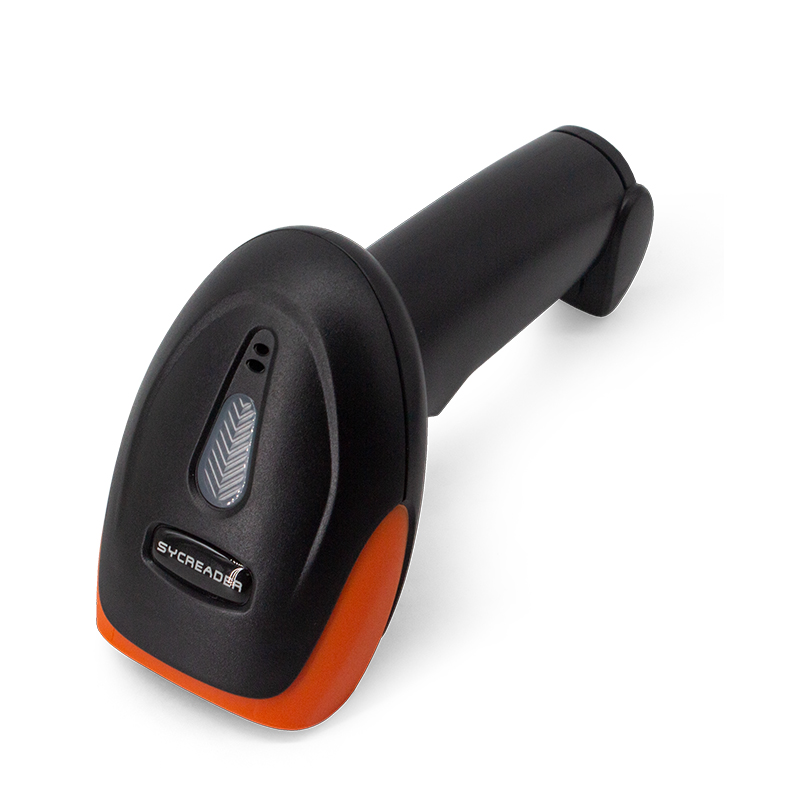

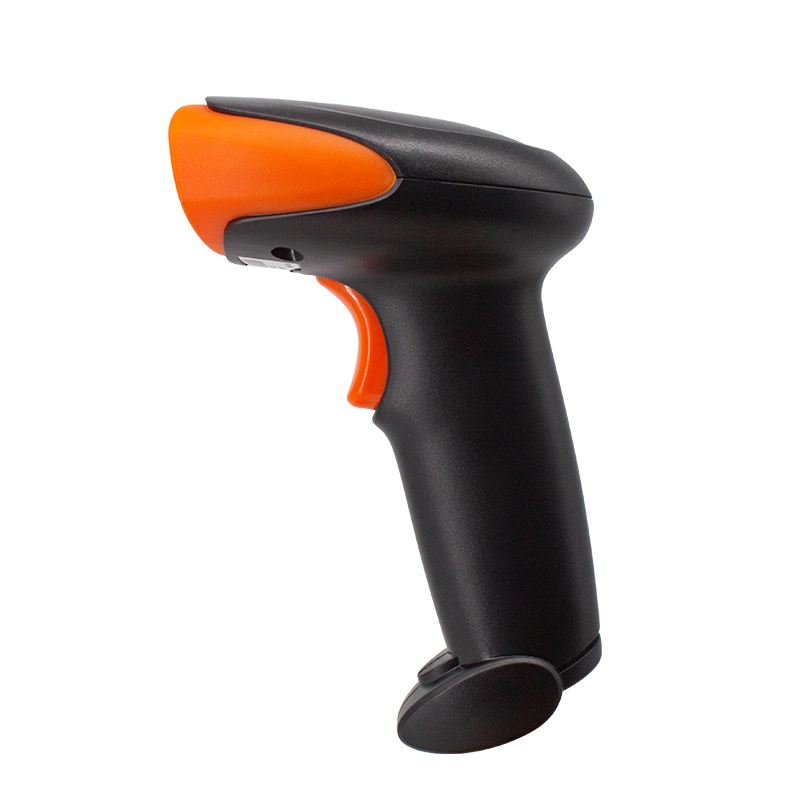

S20-W Wireless 2D scanner
  • S20-W Wireless 2D scanner
  • S20-W Wireless 2D scanner
  • S20-W Wireless 2D scanner
  • S20-W Wireless 2D scanner
  • S20-W Wireless 2D scanner
  • S20-W Wireless 2D scanner
  • Parameters
  • Pictures
  • Dimensions
  • Donwloads
The input voltageDC 5 volts ± 0.25 volts
Power.1.60 watts (working);0.40 watts (standby).
Current.120-200 mAh (working); 10-20 mAh (standby)5 plus/-10% VDC s 130-350 mA
Resolution.752 × 480 pixels
Scan angle± 60 degrees, ± 40 degrees, ± 42 degrees (left, right, back, round).
Battery capacity2000mA
Wireless distance50-80 m
Wireless storage5000-20000
Wireless standby30 days
Wireless continuous work72 hours
The type of decoding1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93,
Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI,
RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25,
GS1 Composite
2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417,
Micro QRCode, MaxiCode, Aztec Code, Code16K
How to promptBuzzer, LED
The system interfaceRS-232 serial port; USB keyboard; USB virtual serial port
How it was triggeredManual.
Appearance size97mmL×67mmW×165mmH
Weight.128g (without cable).
Cable standardStraight line,1.5 meters
The type of interfacePrinter USB
Shell materialPC+ABS
Temperature0 ~ 50 °C (working); -40°C ~ 60°C (storage)
Humidity5% to 95% (no condensation).
How to set it upManual (scan to set barcodes in turn)
Resolution3.5mil (high density series),1mil s 0.0254mm
Read depth of view3.5mil: Code128(9 characters). 15mm— 35mm 5mil: Code39(20 characters). 33mm— 77mm 13mil: UPC (12 characters). 17mm—150mm 20mil: Code39(5 characters). 55mm—195mm 6.7 mil:PDF417(20 characters). 25mm— 90mm 10mil: DM (20 characters). 15mm-115mm 20mil: QR (20 characters). 9mm—175mm
Level of securityEMC Electromagnetic Compatibility: EN55022, EN55024
Electrical safety: EN60950-1
Waterproof and dust-proof seal rating: IP54
Seismic capacity: Impact of 5 or more 1.5 m drops to the cement floor
