D1 series access control reader
  • D1 series access control reader
  • D1 series access control reader
  • D1 series access control reader
  • D1 series access control reader
  • D1 series access control reader
  • D1 series access control reader
  • D1-D
  • D1-C

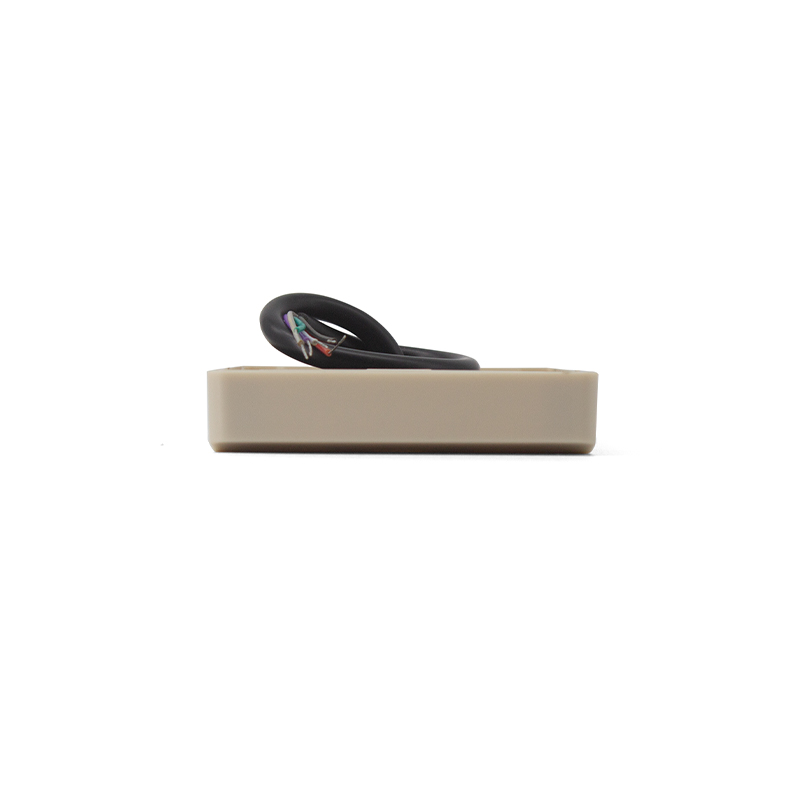

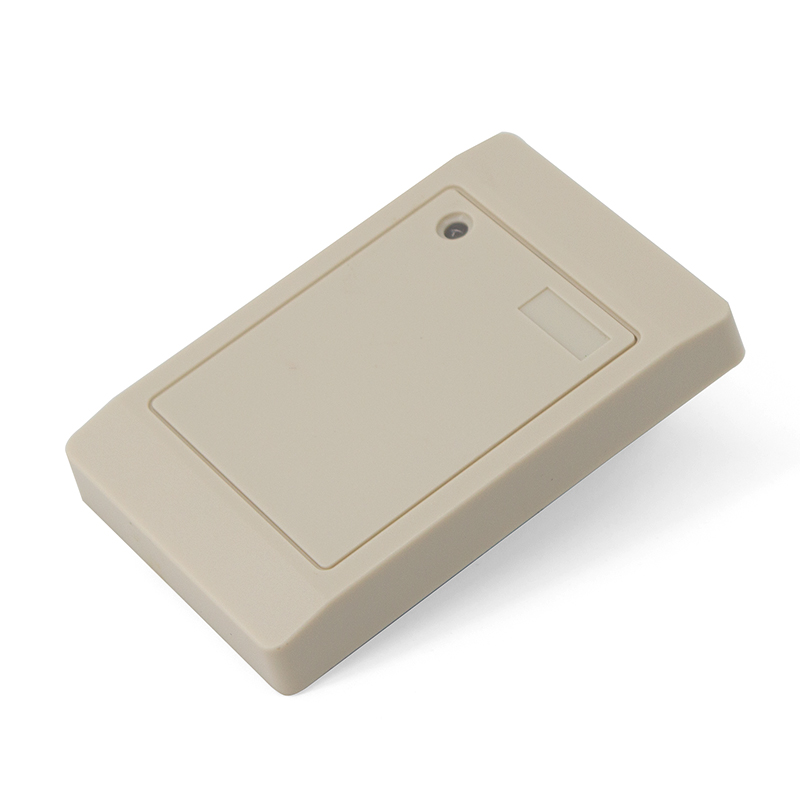

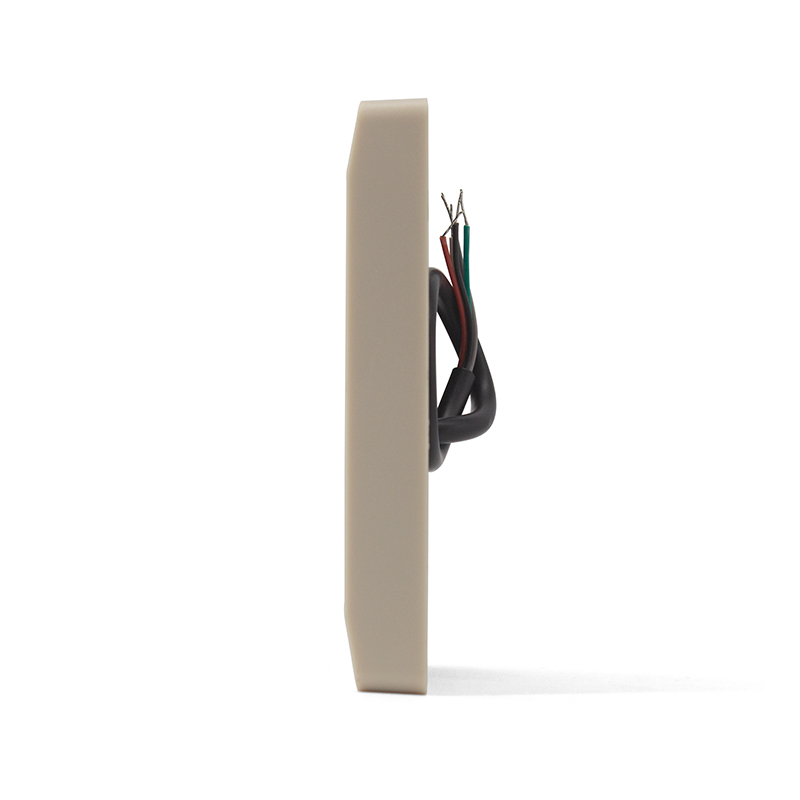

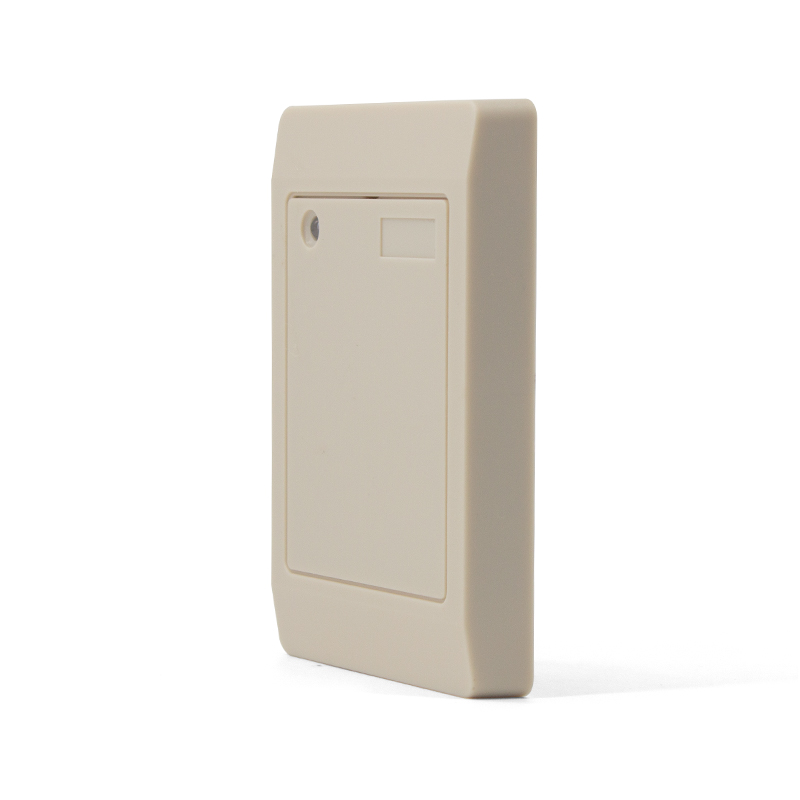

  • Pictures
  • Line definition
ItemParameters
Frequency125Khz
Operating VoltageDC 9V-16V
Consumed Current0-100mA
Support cardsTK4001\EM4100 etc.
 Read Range0mm-100mm (related to the card or the environment)
reader interval<0.5S
FormatWiegand 26/Wiegand 34 (Setting by yourself)
Distance of transmissionWG26/34≥100M
Service Temperature-25℃ ~ +75℃
Size114mm×76mm×16mm
WeightAbout 190G
Lead Length180mm±5mm
MaterialABS & Resin adhesive (it’s waterproof)
Status Indication1PC LED  (Red means standby, Green means reader success)
ItemParameters
Frequency13.56Mhz
Operating VoltageDC 9V-16V
Consumed Current0-100mA
Support cardsMifare one( S50, S70 etc.)
 Read Range0mm-100mm (related to the card or the environment)
reader interval<0.5S
FormatWiegand 26/Wiegand 34 (Setting by yourself)
Distance of transmissionWG26/34≥100M
Service Temperature-25℃ ~ +75℃
Size114mm×76mm×16mm
WeightAbout 190G
Lead Length180mm±5mm
MaterialABS & Resin adhesive (it’s waterproof)
Status Indication1PC LED  (Red means standby, Green means reader success)

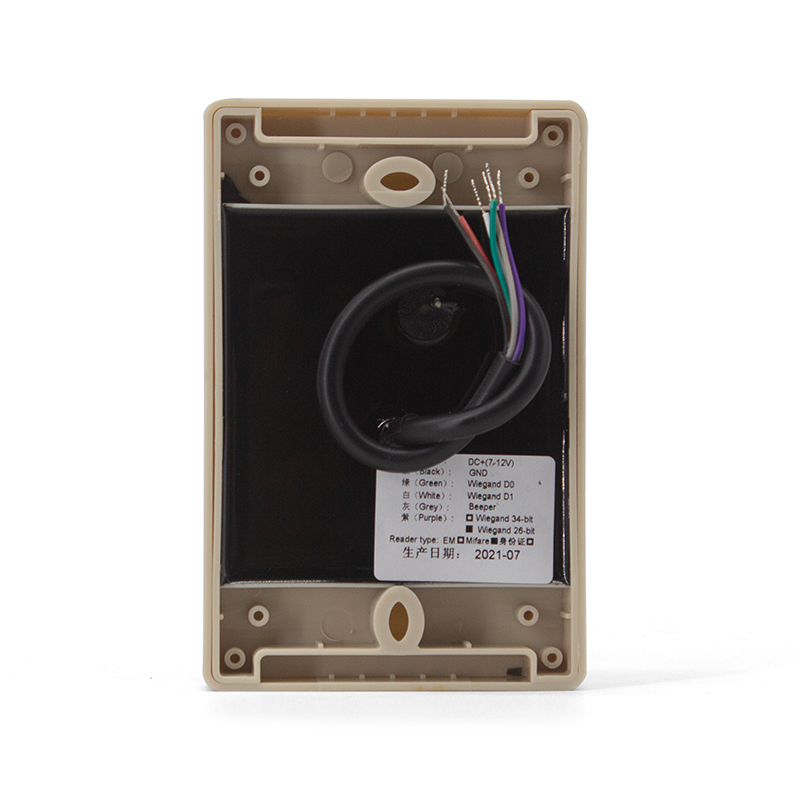

  • Red:   VCC(9V-16V)
  • Black: GND
  • White: Wiegand D1
  • Green: Wiegand D0
  • Grey:  Green light and buzzer long ring
  • Purple:Wiegand 26/Wiegand 34(The output format is WG34 when purple line connect with black line)
