Model: X3
Scan pattern: CMOS
Interface: USB wired

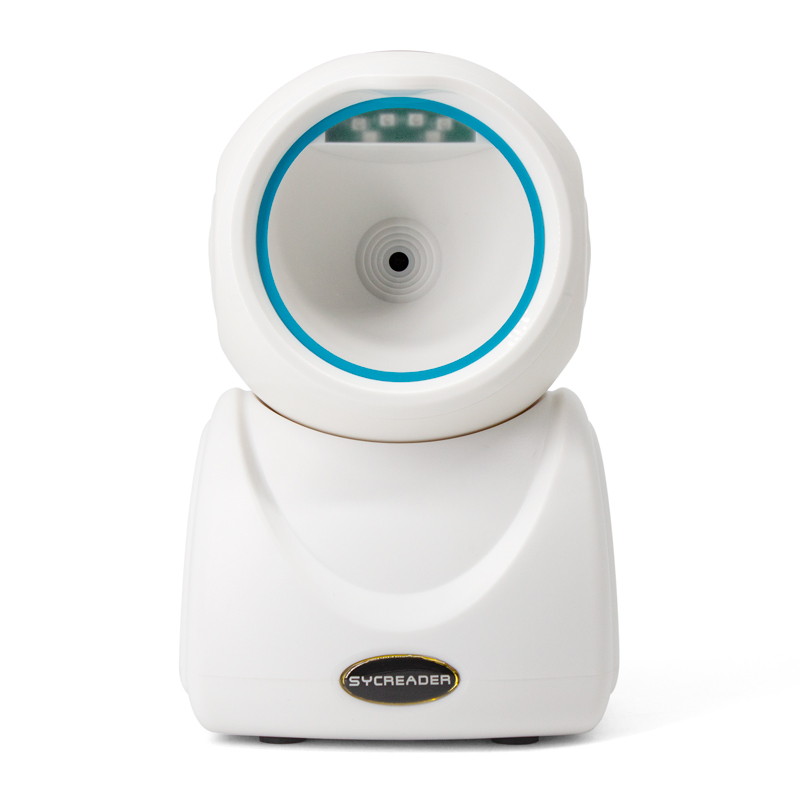

Introduction: X3 is a high-performance 2D barcode fixed platform scanner produced by our company. Adopting global exposure with fast image decoding and high-precision reading ability, efficient resistance to ambient light interference, multi-function scanning, fast scanning speed, powerful reading performance and high accuracy. Widely used in shopping malls, supermarkets, clothing retail and other industries.
- Parameters
- Dimensions
| project | parameter |
| Model: | X3 |
| Code reading mode: | CMOS (Global Exposure). |
| Pixels: | 640*480 |
| Light source: | 617nm red LED |
| Scan Mode: | Omni-induction trigger /manual/continuous |
| Minimum resolution: | 0.127mm(5mil) @Code 39, PCS=90% |
| Usage environment: | 0°C-50°C |
| Storage Temperature: | -20℃~+70℃ |
| Storage humidity: | 5%-95% non-condensing |
| Ambient lighting: | 0~8,600Lux (fluorescent)0~100,000Lux(daylight) |
| Input voltage: | 5VDC±10% |
| Operating current: | 175mA typical |
| Depth of Field Angle: | 30° V x 48° H (vertical) |
| Field of view: | 48° (H) x 30° (V) |
| Interface support: | USB, USB-COM, RS-232 (optional). |
| Dimensions: | 164mm×106mm×84mm |
| Packing size: | 170mm×115mm×115mm |
| Product Weight: | 348g (excluding packaging and accessories). |
| Gross weight: | 523g |
| Cable Standards: | Straight line: 1 .8m |
| Color: | Black/White |
| Material: | ABS+PC |
| Sealing class: | IP54 |
| Drop height: | 1.5m |
| Decoding capability: | 1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS 2D: QR, Data Matrix (DM), PDF417, supports mobile phone screen reading |
